Carrier-Grade Wi-Fi Keeps Pace With Wi-Fi Network Growth: How CableLabs is Contributing

Carrier-Grade Wi-Fi Keeps Pace With Wi-Fi Network Growth: How CableLabs is Contributing Mark Poletti

Mark Poletti
Director, Wireless Network Technologies

Apr 28, 2014

“Operators of all kinds – fixed, mobile, converged and pure-play Wi-Fi – are moving beyond using Wi-Fi just for convenient access, or data offload, and are making it a central part of their broader strategies to support a high quality broadband experience everywhere.”
(Excerpt from WBA Industry Report 2013: Global Trends in Public Wi-Fi p3)

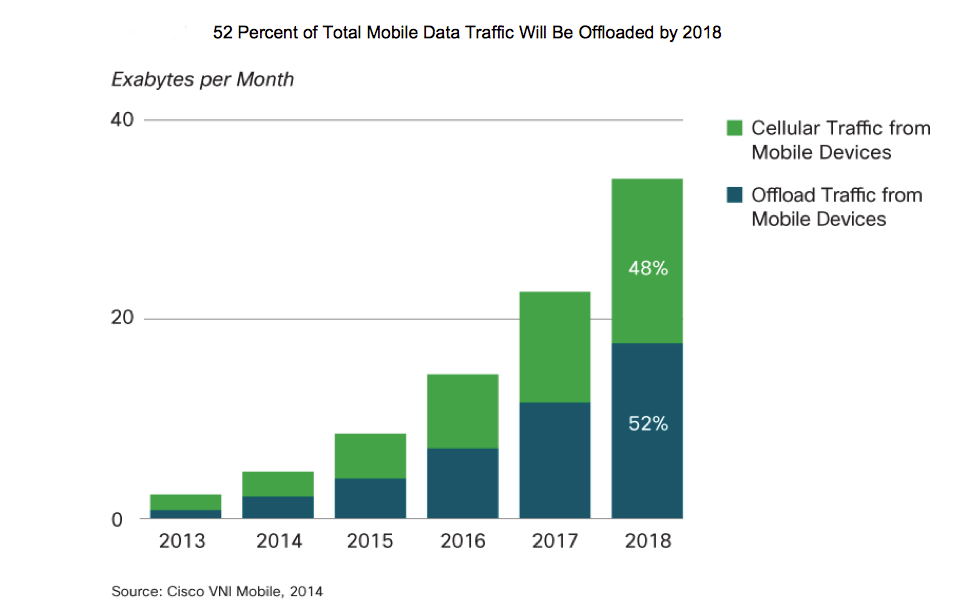

Over the past few years Wi-Fi networks have seen substantial growth in the number of hotspots to deliver expanded coverage and new service offerings.  Wi-Fi networks offer unique characteristics, such as very high data rates (50 Mbps up to 400 Mbps using 802.11n),  easy connection to neutral hosts, and unlicensed shared spectrum.  Hotspots have very small coverage and are especially useful in areas with dense population.  This is very attractive to 3G/4G cellular carriers experiencing congestion due to spectrum and network capacity limitations.  Cellular networks experiencing such congestion use Wi-Fi networks to offload cellular data to maintain service and data integrity.


The Wireless Broadband Association (WBA) projects that 22% of new carrier capacity will come from Wi-Fi networks in 2014.

Wi-Fi network operators are exploring opportunities beyond 3G offload that will offer differentiated services to their core business.  For example, Wi-Fi network operators, such as mobile operators (MNOs) and cable operators (MSOs), offer service plans that enhance (e.g. from fixed cable to wireless used by cable operators) or extend (e.g. mobile to Wi-Fi used by T-Mobile, Verizon) existing service.   As mobile and Wi-Fi services continue to overlap and converge, the integration of mobile and Wi-Fi networks,  such as that used for 3G to Wi-Fi network handoff, will continue to become increasingly prevalent and more complex.


(Excerpt from WBA Industry Report 2013: Global Trends in Public Wi-Fi)

Vision of Carrier Grade Wi-Fi

As Wi-Fi networks are used for faster and more robust data, video, and voice services, maintaining a quality-user experience is becoming increasingly important.  “Carrier grade Wi-Fi” is a phrase used for an industry effort to improve Wi-Fi network design, management, and performance to closely match that of cellular networks within the inherent limitations of Wi-Fi.  The carrier grade Wi-Fi effort touches all aspects of the Wi-Fi ecosystem including vendors, operators, chipset manufacturers, industry groups, and standards bodies.

Wi-Fi was created to share unlicensed spectrum on a non-interfering basis with autonomous performance and control for any number of users.  As industry and market demand has evolved over the years, Institute of Electrical and Electronics Engineers (IEEE) standards and industry groups – such as the Wi-Fi Alliance (WFA) and the Wireless Broadband Alliance (WBA) – have continually added features to improve the quality of Wi-Fi network service, performance, and management.  Recent activities have begun to address specific features that will enable Wi-Fi to be carrier grade.

The WBA recently submitted a white paper addressing carrier grade Wi-Fi guidelines and providing definition of carrier grade Wi-Fi features.  In addition, the WFA has been incorporating these features into interoperability certification.

CableLabs has submitted several contributions that provide carrier grade Wi-Fi feature definition and use cases.  These features have been incorporated into an initial operators’ requirements document that will, once completed, be referenced by WFA task groups as test requirements for WFA certification.

CableLabs has also submitted a contribution to the Wi-Fi Mobile Converged Wireless Group (CWG) Test Plan Group.  This group has the charter to define the testing procedures for radio-frequency performance of all Wi-Fi devices (i.e. access points, tablets, Wi-Fi clients, and smartphones).

Radio Frequency (RF) Performance Is Key to Carrier Grade Wi-Fi

One key aspect of carrier grade Wi-Fi is RF performance.  At present, Wi-Fi access points (APs) and devices are not held to defined RF performance standards. This impacts coverage and capacity performance of Wi-Fi networks. For enterprise and consumer devices, defining minimum RF performance requirements will ensure that poorly performing devices don’t reduce overall network capacity.  It is important to note that maximizing transmitter and receiver performance has a dramatic impact on the coverage and capacity of Wi-Fi networks.

The graph in Figure 1 shows that a few decibels (dBs) – a measurement of RF power – of underperforming Wi-Fi devices can result in shorter range and lower throughput.  In Figure 1, the coverage heat maps of carrier grade and non-compliant Wi-Fi APs are shown, which indicate a significant reduction of coverage performance for non-compliant APs.


Figure 1 – Coverage Performance of Carrier Grade vs. Underperforming Wi-Fi Devices

By improving the RF component selection and design optimization in Wi-Fi devices, the achievable network throughput significantly improves.  CableLabs is working with Industry bodies to determine reasonable performance thresholds for AP and Wi-Fi devices.

Current State of RF Certifications

At present, RF certification of Wi-Fi devices and access points is optional with no minimum performance standards.  Original Equipment Manufacturers (OEMs) have the option whether to test their equipment against WFA standards or not.  Although current test plans are thorough, they do not contain pass/fail or minimum performance levels requirements.

Currently, Federal Communications Commission (FCC) RF regulations are only intended to ensure public safety and non-interference with co-channel and adjacent channel systems. The regulations are designed for “not to exceed” power levels, not for minimum levels. In other words, the FCC focus has been on avoiding interference to other systems as opposed to requiring minimum performance requirements. The lack of receiver sensitivity tests does not provide assessment of end-user performance.  In addition, FCC tests do not cover device throughput performance versus coverage or interference.



Figure 2 – CWG RF Certification Testing for Smart Phones, Home and Small Office APs

As shown in Figure 2, CWG RF certification testing of Wi-Fi devices has not been pursued by OEMs and device OEM participation is decreasing.  CableLabs is working with industry bodies to recommend requiring that Wi-Fi devices meet minimum RF performance criteria during WFA RF testing and encourage RF certification testing.

CableLabs to Install RF Anechoic Chamber


CableLabs is in the process of installing an in-house RF anechoic chamber with the capability to measure RF performance of Wi-Fi devices such as total isotropic sensitivity (TIS), total radiated power (TRP), Wi-Fi adjacent-/co-channel interference and LTE interference.  Scheduled completion is late July 2014.  Once complete, CableLabs will have the ability to test RF performance of all Wi-Fi devices.  The RF chamber will be available to all member MSOs with the potential to lead Wi-Fi RF certification tests within the Wi-Fi industry.

Wi-Fi First Service Will Benefit from Carrier Grade Wi-Fi

Wi-Fi first service, a hybrid Wi-Fi/mobile service, where voice over Wi-Fi service is selected first over mobile voice service, is among the many new innovative services being introduced by Wi-Fi network operators.  This service offers several technical challenges such as:

  • Maintaining seamless Wi-Fi roaming and handover between Wi-Fi and 3G/4G networks
  • Maintaining authentication and security across Wi-Fi and 3G/4G networks
  • Supporting service profile across Wi-Fi and 3G/4G networks
  • Providing efficient mobile device network discovery, selection, and attachment
  • Delivering quality of service

Wi-Fi network operators are developing customized solutions to network architectures and target markets unique to their core business. As carrier grade Wi-Fi continues to gain momentum, it will offer improvement to Wi-Fi network quality and user experience. CableLabs is working with vendors and operators to develop solutions with emphasis on developing carrier grade Wi-Fi features.

Other Aspects of Carrier Grade Wi-Fi: What’s Next?

As carrier grade Wi-Fi continues to gain traction in the industry, CableLabs will maintain pace with standards body activities, product roadmaps, technology roadmaps, new services, business paradigms, and technology disruptors that will impact user experience and quality of Wi-Fi networks.  Future blog posts will provide updates to carrier grade Wi-Fi features that may include:

  • Solutions to Wi-Fi first network architectures and mobile applications
  • Carrier Grade Wi-Fi WFA certifications
  • IEEE 802.11 feature enhancements
  • Carrier Grade best practices for Wi-Fi  network planning, operation and performance
  • Quality of Service


Mark Poletti is a Lead Wireless Architect with CableLabs.  He has been addressing mobile operator design, operations and performance issues of 2G, 3G, 4G, and satellite networks for over 20 years.   Mark is a member of the WFA and WBA and is focused on the wireless convergence of MSO and MNO networks.
